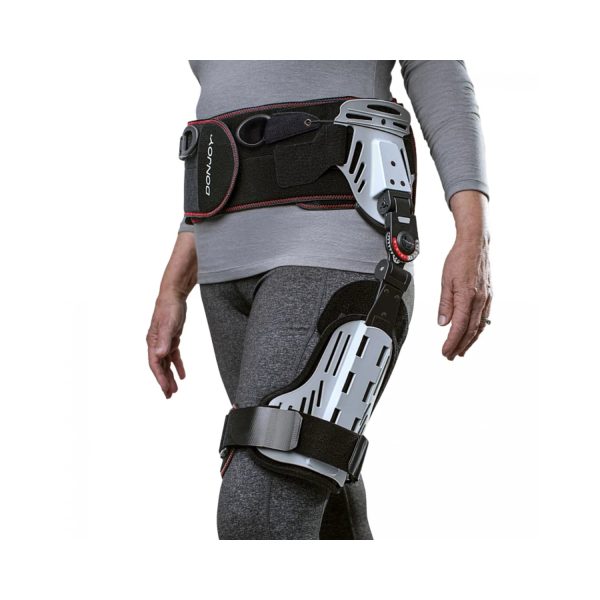

Donjoy Hip Brace helps provide support and protection for post primary or hip revision surgery.
The malleable hip and thigh frames conform to the patient’s hip for optimal fit.
Includes ROM (Range of Motion) adjustment to allow controlled hip flexion in 15 degree increments.
The brace is easy to use with its adduction push buttons.
ROM hip brace fits right or left hip up to a 54" waist circumference.
Donjoy ROM Hip Brace aids to keep the hip and pelvic area stable.
Involves telescoping height adjustment to accommodate a wide range of heights and body shapes.
The lightweight and slim-profile design helps to maximize patient’s comfort and compliance.
Laterally placed abduction paddle with three-point pressure in hip brace belt aids in maintaining the head of the femur in the acetabulum.
Includes integrated belt compression with cinching straps assists in aligning the hip joint and thigh cuff.

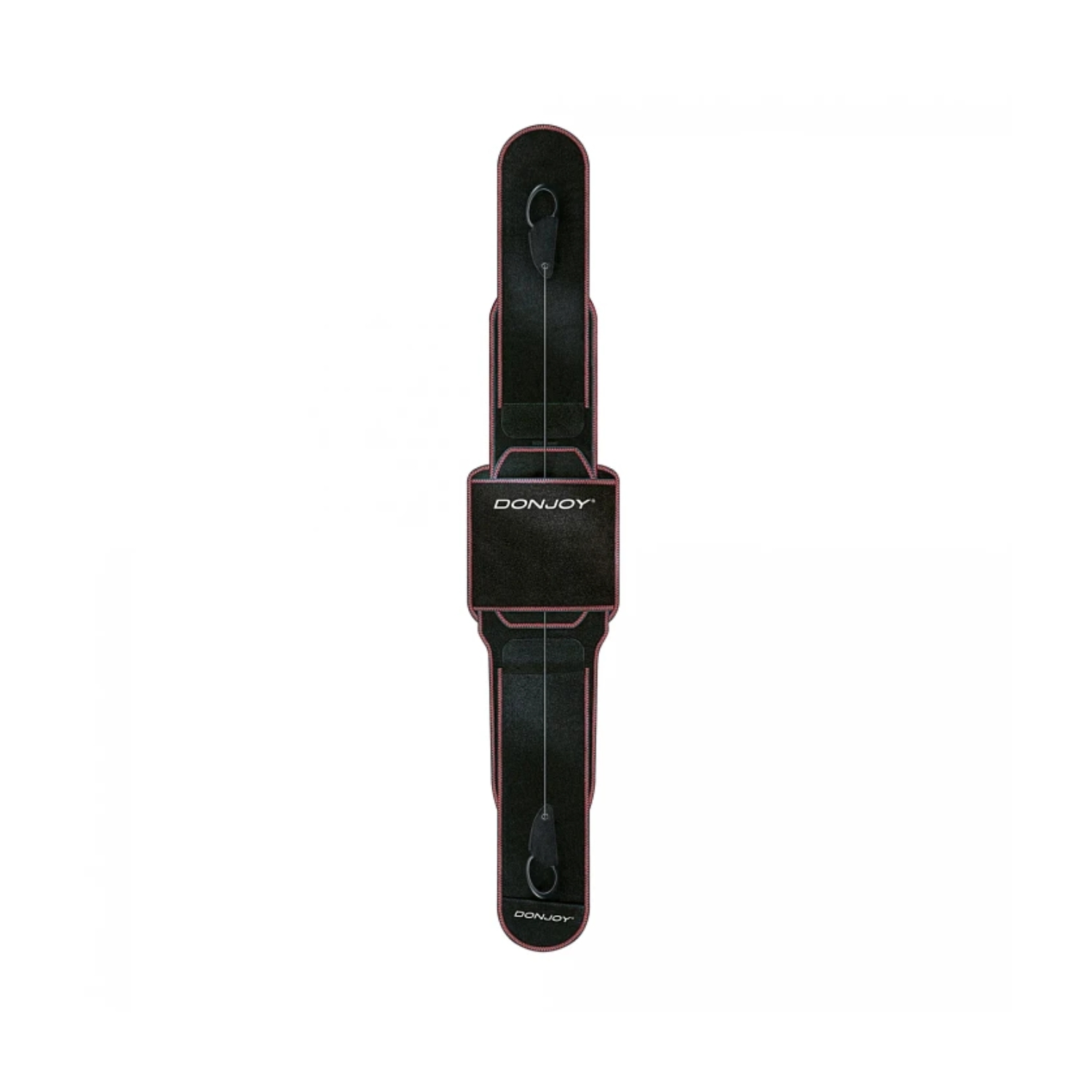

Wrap the waist belt approximately 1” (2.5cm) above the widest part of the hips and secure the hook and loop attachment on the front side of the patients.

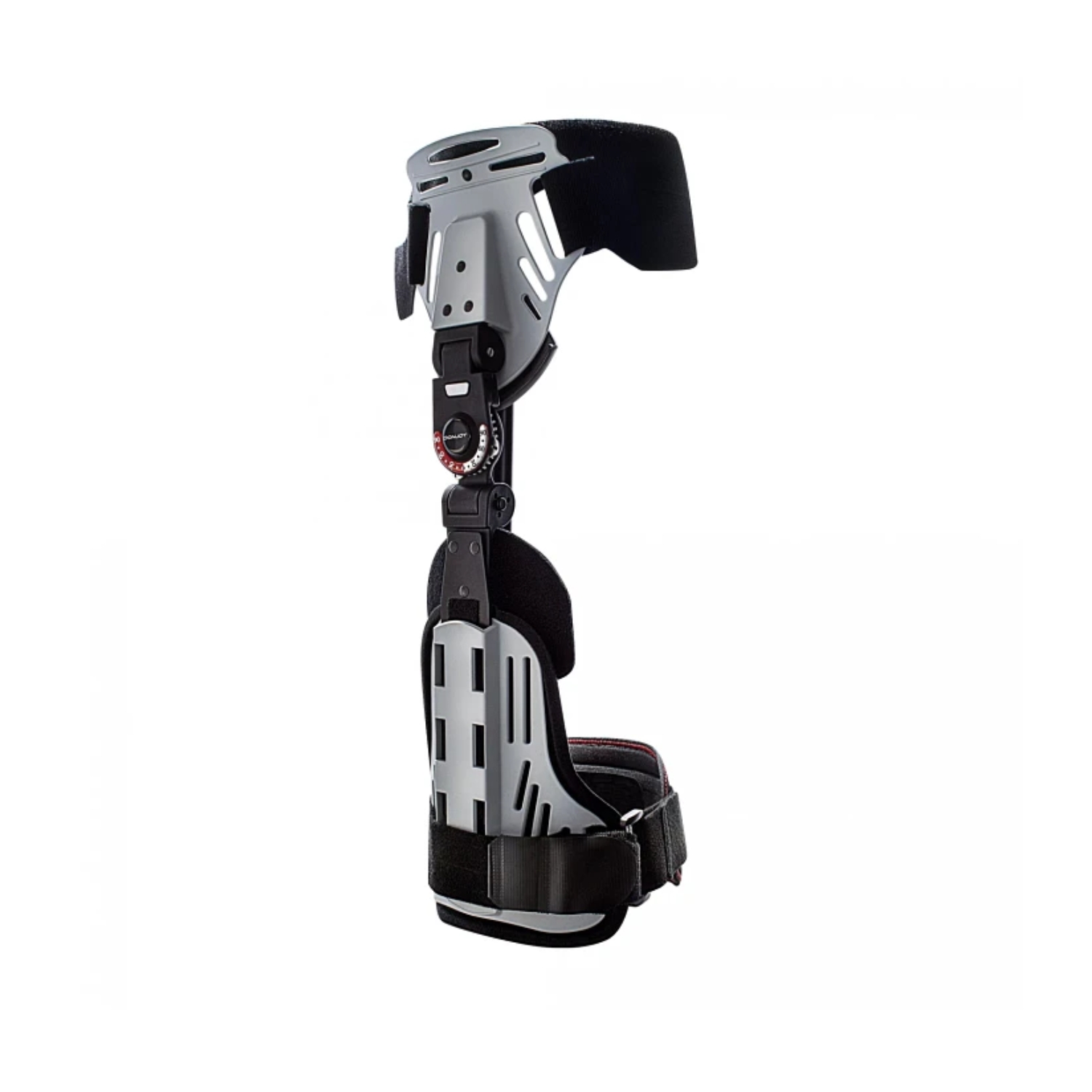

Prepare pelvic shell and hinge assembly for placement.
Set the flexion and extension stops by pressing the center button on the face of the hinge and moving each respective tab to the desired positions.
Make sure the center button returns to a fully locked position.
A click sound may be heard and the center button protrudes when locked.
DO NOT remove the “peel away” red tab on the pelvic shell or the red “protective strip” found on the thigh component.
Position the pelvic shell and hinge assembly so it is centered laterally with the top aligned just below the top edge of the belt assembly, reposition if necessary.
Once the pelvic component is positioned correctly, peel away the red tab from the pelvic shell and fully engage the hook-and-loop wings.
Slide the thigh component up and down the distal bar to the desired position. Be sure to leave enough clearance for knee movement.
Reposition as necessary without removing the red protective strip.
Once the thigh component is in the desired position remove the red protective strip, fully exposing the aggressive hook-and-loop underneath.
Press the shell firmly against the distal bar to fully engage the hook-and-loop.
Wrap thigh strap around leg and adhere hook and loop tab.
To adjust the thigh strap, peel open the shiny tab to expose the strap ends. Cut the strap, and reapply the hook tab. Please be careful not to cut the strap too short.
Pull the pull tabs around and attach to the front of the waist belt.
To remove the hip brace, detach the pull tabs on the side of the waist belt then unfasten the belt and thigh cuff.
Remove hip brace.
Note: If not rinsed thoroughly, residual soap may cause irritation and deteriorate material
