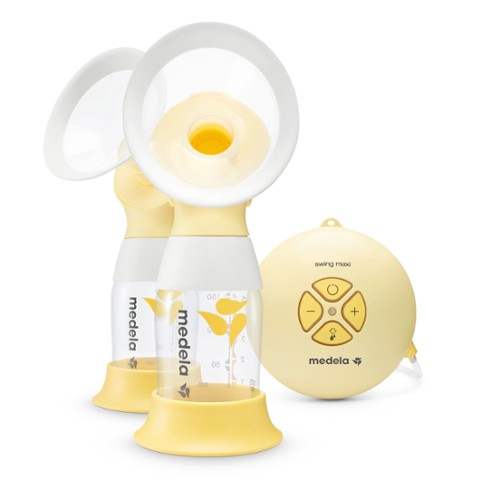

• Double electric breast pump allows you to express milk from both breasts simultaneously.
• Proven to yield 18% more milk than single pumping in one session.
• Designed with 2-phase Expression® technology and includes PersonalFix Flex™ breast shields of two different sizes.
• You can do single pumping or double pumping as per your requirement with this.
• Swing Maxi™ double electric breast pump is designed with 4-button intuitive and 9 pre-programmed settings to provide customized usage.
• 2-phase Expression® mimics baby’s natural sucking rhythms; this ensures comfortable feel.
• PersonalFit Flex™ breast shield has 105-degree opening angle, soft rim and oval shape for a better fit, puts less pressure on your milk ducts than traditional breast shields.
• This breast shield can be easily adjusted to fit the breast and results in a more effective and comfortable pumping experience.
• You can adjust the vaccum level (increase / decrease) with the buttons (+ / -) easily as per your comfort level.
• Its closed system prevents milk from entering the tube, overflowing or leaking
• As it comes with built in rechargeable battery which can provide up to 6 pumping sessions in one full recharge.

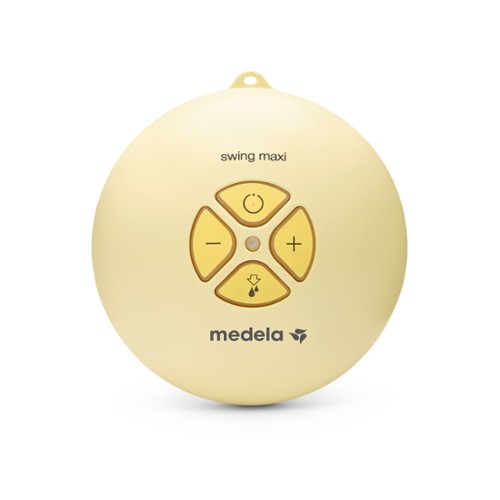

• 1 x Swing Maxi motor unit
• 2 x 150 ml bottle with lid
• 2 x Bottle stand
• 2 x PersonalFit Flex™ connector
• 2 x PersonalFit Flex™ breast shield (size 21 mm)
• 2 x PersonalFit Flex™ breast shield (size 24 mm)
• 1 x USB charging cable
• 1 x USB power adapter
• 1 x Instruction for use for Swing Maxi

• Assemble all the parts of the pump carefully for single pumping / double pumping as per your requirement (refer the enclosed leaflet for better understanding).

• Place the breast shields on your breasts so that the nipple is properly centered in the tunnel.

• Hold the breast shield and connector onto your breast with your thumb and index finger.

• Support your breast with the palm of your hand.

• Start pumping by pressing On / Pause / Off button.

• The stimulation phase begins and the status light is flashing, once you press start button.

• Adjust the vacuum with the buttons (+ / -) as per your comfort.

• As soon as your milk begins to flow, press the Let-down button (upright button); the expression phase begins and the status light is on steadily. NOTE: If the Let-down button is not pressed within one minute, the breast pump will automatically go to expression phase.

• Adjust the vacuum with the buttons (+ / -) to find your maximum comfort vacuum.

• Pause: In both stimulation and expression phase the breast pump can be paused. This allows you to re-adjust yourself or the pump set.

• For pausing, press the On / Pause / Off button while the breast pump is running; then the pumping operation stops and the status light is pulsing.

• To resume pumping, press the On / Pause / Off button again.

• To turn off the breast, press and hold the On / Pause / Off button for two seconds.

• Store the expressed milk safely.

Status light – Mode of pump

1. Light is off – Pump is off
2. Light is flashing – Pump is on, stimulation phase
3. Lights up steadily – Pump is on, expression phase
4. Light is pulsing – Pump is on, paused

White – Battery level Good

Yellow – Low, enough to finish one pump session

Red – Very low, charge the battery immediately

• Refer the enclosed manual carefully.
• Wash the components before first use and after each use.
• Sanitize / disinfect the components before first use and once per day.
• Clean the tube separately.
• If the tube becomes mouldy, replace it with a new one.
• If you experience any pain / discomfort while pumping, adjust the vaccum level and consult your doctor.
• Store the expressed milk in a well sterilized bottle / container.
• Don’t clean the pump unit with water; just wipe it with a towel moistened with soapy water or with a dry cloth.
• Do not use the breast milk from bottles or components that show signs of damage.
• Keep out of reach of children.
